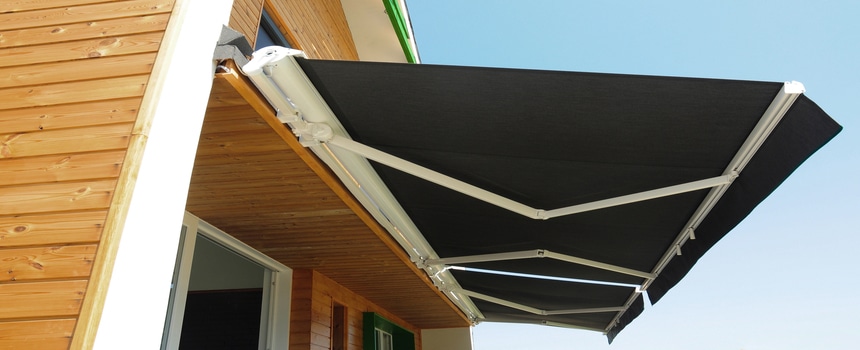

What Size Retractable Awning Do I Need for a 10×12, 12×16, or 14×20 Patio?

When planning a retractable awning for your patio, choosing the right size ensures full protection and long-term performance. A 10×12 patio typically needs an awning that measures 10 to 12 feet wide and extends 8 to 10 feet from the wall. This configuration provides full shade coverage during the hottest hours of the day. For larger spaces, such as a 12×16 or 14×20 patio, the awning width should match the patio’s dimensions while maintaining a projection of 8 to 10 feet for ideal coverage and support.

The right awning size shields your outdoor furniture, flooring, and décor from harmful UV rays while keeping the area cool and comfortable. As the sun’s position changes by 30 to 40 percent between summer and winter, accurate measurements help ensure your awning continues to cast shade where it’s needed most. Before purchasing your awning product, evaluate the slope or pitch angle, as it determines how well water drains and how much wind resistance your setup provides. Most residential awnings perform best with a 15- to 20-degree pitch, balancing both function and appearance.

Fabric selection also plays an important role in performance. Materials like acrylic, vinyl, and polyester offer varying levels of UV protection, water resistance, and color retention. Darker tones tend to block more sunlight but may absorb more heat. Motorized systems, which add convenience and remote control capability, can increase the total height and weight of the installation, while manual cranks are lighter but require more effort to operate.

Your mounting surface must be strong enough to handle 200 to 400 pounds, depending on the awning’s size and configuration. Brick, concrete, and reinforced wood structures are the most reliable options, especially when installed beneath the soffit or directly on a solid exterior wall. Because wind is one of the biggest threats to awning durability, it’s important to retract the system when gusts exceed 20 to 25 mph to avoid structural strain.

For homes with attached decks or raised patios, careful measurement ensures the awning sits at the proper height for both clearance and shade effectiveness. With the correct setup, you can continue enjoying your outdoor living area comfortably throughout the seasons, protected from excessive sun exposure and light rain while enhancing your home’s style and usability.

Measure Your Space & Determine Coverage Needs

Before choosing a retractable awning, it’s important to take precise measurements and understand how each factor affects performance. Start by measuring the mounting height where the brackets will attach to your wall or soffit. This height determines both the slope of the awning and the clearance space underneath when it’s fully extended. Next, measure the available fabric width along the wall to make sure your new awning will provide complete coverage without interfering with nearby windows, doors, or architectural features.

Consider the path of the sun throughout the day and across different seasons to maximize shade and sun protection. For example, a 10×12 patio typically requires an awning that spans between 10 and 12 feet with an 8 to 10-foot projection. These proportions ensure that your outdoor furniture and seating areas remain cool and comfortable while protecting against harmful UV rays.

When installing a manual retractable awning, review all tools required for a safe and accurate setup. Depending on the surface type—whether brick, concrete, or wood—you’ll need specific hardware to ensure a secure fit. Check for potential obstructions such as light fixtures, downspouts, or window frames that could interfere with the mounting process.

Accurate planning not only ensures that your awning fits correctly but also helps maintain its durability and performance over time. With the right measurements, equipment, and positioning, your awning will deliver reliable sun protection and create a welcoming, shaded space where you can relax and entertain comfortably throughout the day.

Projection, Pitch & Sun Angle Considerations

The awning’s projection depth determines how much shade your outdoor area receives and how effectively it blocks sunlight throughout the day. While an 8–10 foot projection works for most patios, the exact measurement depends on how the sun moves across your property. The sun’s position changes throughout the day and year, affecting where and how your shaded areas form.

Key projection and pitch factors include:

• Projection depth: Extends between 5–12 feet outward from the wall where the awning is mounted. This measurement defines the farthest point of shade when the sun sits directly overhead.
• Pitch angle: Establishes a 10–15 degree downward slope, allowing rainwater to drain efficiently while also blocking more direct sunlight from entering windows or doorways.
• Sun’s path tracking: Homes that face south benefit from deeper projections, while properties with western exposure need greater coverage to manage intense afternoon sun.
• Seasonal variations: The sun reaches a higher arc in summer and stays lower during winter, altering the shaded zone by as much as 30–40 percent.

By aligning your awning’s projection and pitch with the sun’s movement patterns, you can ensure consistent shade coverage throughout the year. Factors such as your location’s solar position data, geographical latitude, and building orientation (north, south, east, or west) all play major roles in determining performance. Understanding these environmental details allows you to design an awning setup that maximizes comfort, reduces heat exposure, and enhances your outdoor living experience year-round.

Material, Motorization & Load Capacity Factors

The type of fabric you select determines your awning’s lifespan, weather resistance, and overall performance. Solution-dyed acrylic fabrics offer the best UV protection and maintain their color for many years, making them ideal for areas with strong sunlight. Polyester blends provide a more affordable option for moderate use, while marine-grade vinyl completely blocks water and is best for homes located near oceans, lakes, or other humid environments. Heavier fabrics require stronger mounting brackets and reinforced frame parts to safely support the added weight.

Motorized systems add convenience but also introduce additional factors to consider. The motor housing must be placed correctly, electrical wiring must comply with building codes, and the moving parts must endure more mechanical stress over time. A motorized awning adds approximately 15 to 25 pounds to the total load your wall must support, so evaluating your wall’s structural capacity is essential before installation.

Frame materials also play a crucial role in performance and durability. Aluminum frames resist rust and corrosion better than steel, making them suitable for damp or coastal climates. However, steel frames can hold more weight and provide stronger structural support, though they require protective coatings to prevent rust in humid conditions.

Wind ratings indicate how much force your awning can safely handle. Before choosing a system, check local wind data to understand the average speeds in your area. Homes in coastal or mountainous regions experience different conditions from those in open plains or desert areas. For example, a homeowner in Miami needs an awning designed for high humidity and strong gusts, while someone in Phoenix requires a product built for dry heat and intense sun exposure. Matching your awning materials, frame, and motor system to local weather ensures lasting performance, reduces maintenance costs, and protects your investment for years to come.

Installation, Permits & Warranty Guidance

Proper awning installation requires careful planning and professional attention to detail. The process starts by identifying your wall type, selecting compatible mounting hardware, and marking exact bracket locations to support the awning’s weight and movement. Before installation begins, it’s important to check for overhead obstacles such as roof soffits, power lines, gutters, and landscaping elements that could interfere with the awning’s projection or retraction. Accurate measurements ensure the awning extends fully without hitting nearby structures or blocking pathways.

Local regulations may require building permits, especially for large or motorized awnings. Many cities and counties mandate permits for installations that are permanent or connected to electrical systems. These permits help verify that mounting methods, wiring, and safety standards meet code requirements. Homeowners should always confirm local rules before scheduling installation.

Key installation and warranty considerations include:

• Wall Material Assessment: Different wall types—such as brick, wood, stucco, or poured concrete—need specialized bolts, anchors, and load-distribution techniques to ensure the awning remains stable and secure under stress.
• Clearance Requirements: Installers must maintain at least 8 inches of open space above windows and doors to allow smooth fabric movement and prevent material bunching or tearing.
• Installation Documentation: After setup, request a certificate from your installer verifying proper mounting and alignment. This document is critical if you ever need to file a warranty claim.
• Warranty Coverage Review: Read all warranty terms carefully before purchase. Pay attention to how long coverage lasts for fabric fading, sun damage, frame corrosion, and motor or control system malfunctions.

Professional installation backed by proper documentation not only ensures long-term durability and safety but also protects your investment through valid warranty support.
